BMW i3 (2013-2022) Drivetrain error – HV battery temperature sensor/CSC fault
Drivetrain error warning present
Vehicle would begin to drive, then stop with warnings
The following fault code(s) may be present
21F105 -High voltage battery cell supervision circuit 3 – temperature measurement of the cell block
21F153 - High-voltage battery, safety concept 2: safety circuit to switch off the switch contactors, switch-off detected
21F147 - High-voltage battery, safety concept 2: temperature too high or unknown
21F15C - SME, safety concept: switch-off of switch contactors by safety circuit
Do you have a BMW i3 that’s showing a drivetrain error and cutting out shortly after moving off?
Don't ignore it. Book an initial inspection today and get expert help.
Parts Repaired or Replaced
- HV battery module temperature sensors / thermistors
- CSCs (full set replaced)
Affected Vehicles
BMW i3
- BMW i3 2013
- BMW i3 2014
- BMW i3 2015
- BMW i3 2016
- BMW i3 2017
- BMW i3 2018
- BMW i3 2019
- BMW i3 2020
- BMW i3 2021
- BMW i3 2022
Common Failure Symptoms
- Drivetrain warning present
- Vehicle stops shortly after attempting to drive
- HV battery safety shut-down / contactor switch-off fault codes
- Out-of-spec HV battery temperature readings
BMW i3 Diagnostic Report
Initial diagnostics confirmed a persistent drivetrain error. A HVIL error was confirmed, however voltage values were within specification. However, temperature readings were out of specification, indicating an internal HV battery temperature sensing issue which required further attention.
BMW i3 Repairs
ISTA diagnostics confirmed the fault remained present with permanent fault codes stored in the SME. The HV battery was removed for internal inspection. Comparative checks on module thermistors indicated a discrepancy on one of the modules. CSC emulation did not remove the fault, so the repair plan progressed to replacing the faulty parts and renewing the CSCs as a complete set.
- Carried out ISTA session; confirmed fault remains present and permanent SME faults stored

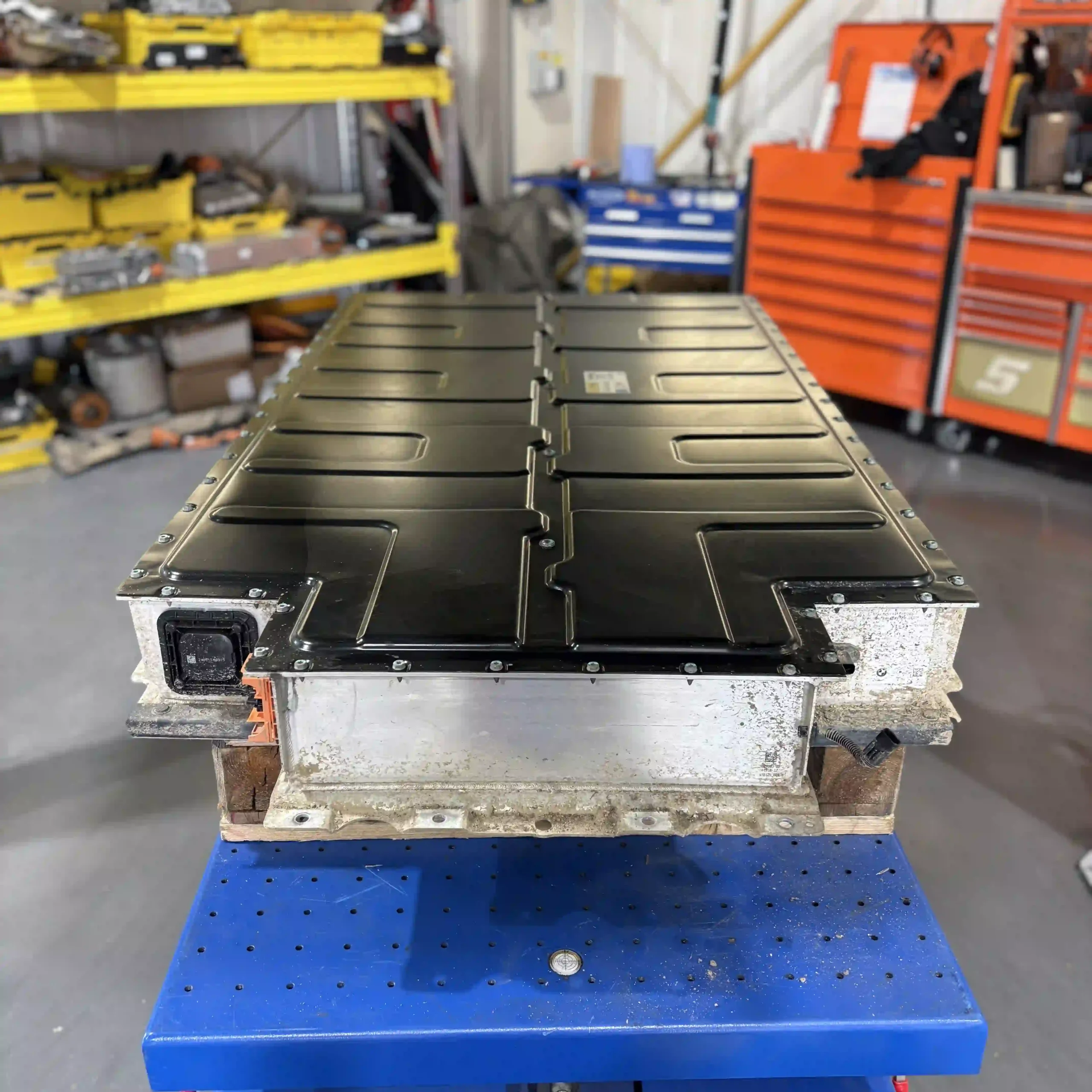

- Removed HV battery and lids

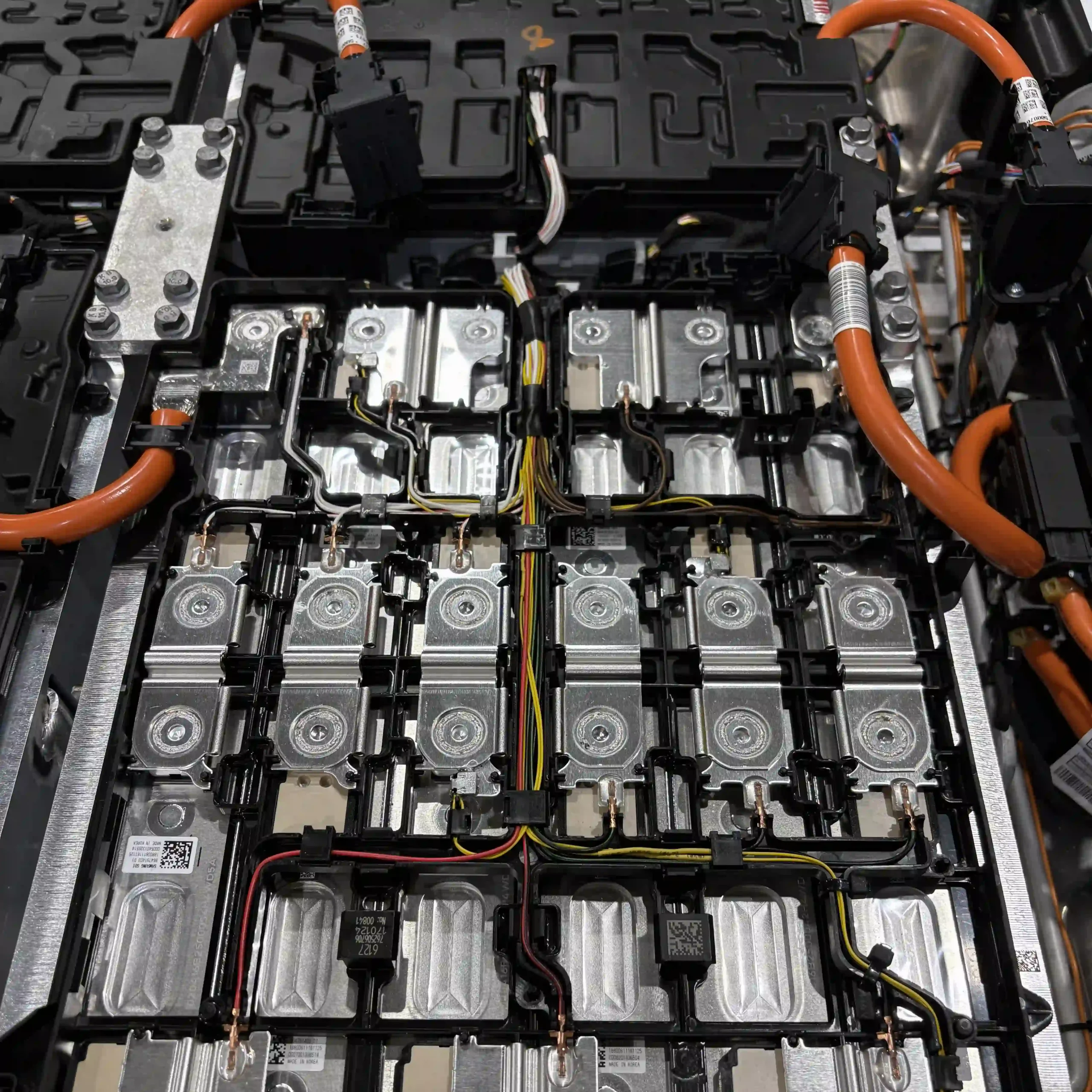

- Comparative checks revealed abnormal readings

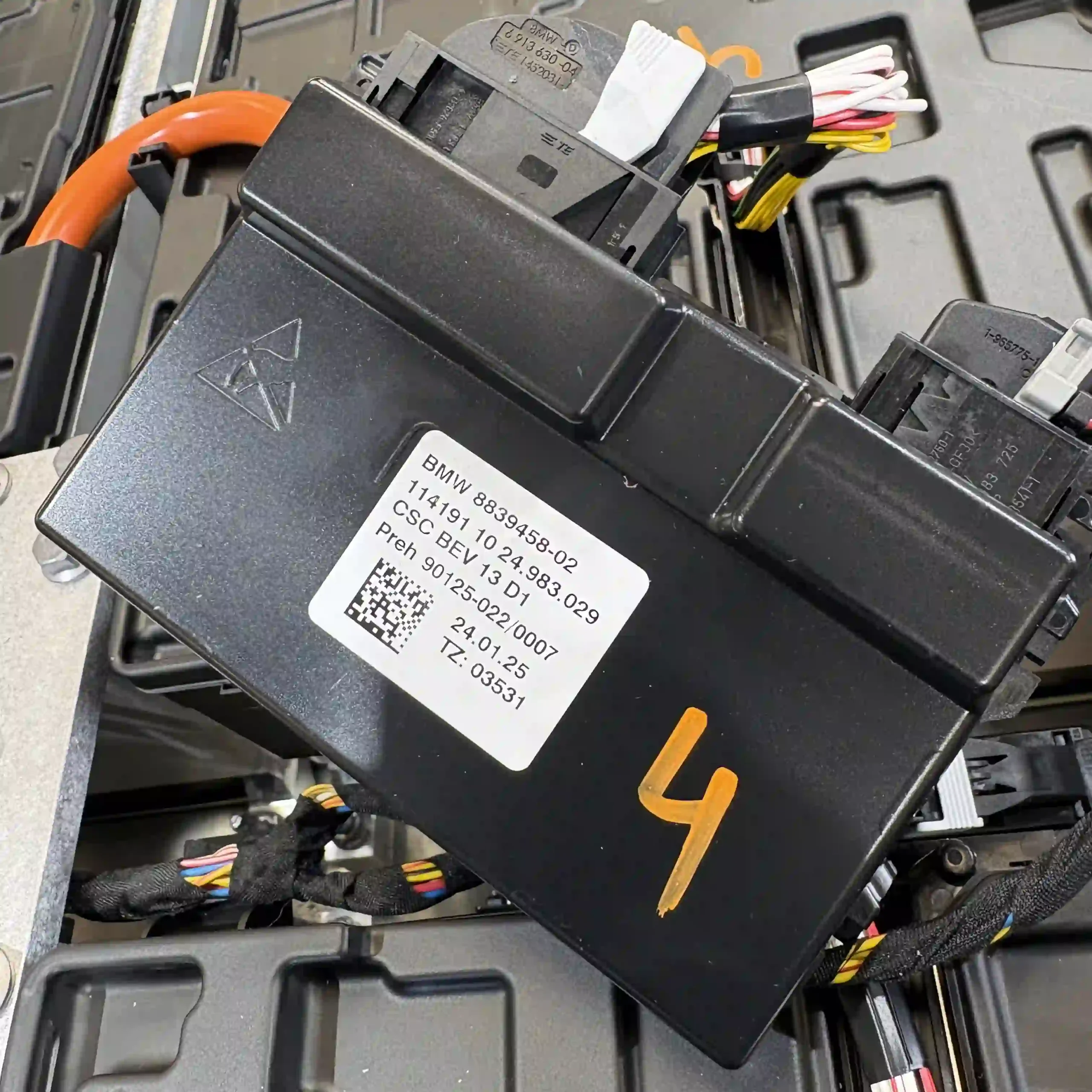

- Replaced all CSCs
- Replaced faulty temperature sensors/thermistors
- Verified data integrity
- Reinstalled HV battery; recharged A/C system
- Powered up vehicle; HV online; cleared faults; road test completed with no faults under driving conditions
Resolution
The vehicle was powered up successfully with the HV system online and no recurring drivetrain warnings. All faults were checked and cleared, and a road test confirmed the issue was resolved under real driving conditions.
Following the repair:
- HV system online and stable
- All faults cleared successfully
- Road test completed with no faults present
